It’s
not surprising that Dolby Atmos can be a confusing topic, even for enthusiasts
who pride themselves on being the “go-to guy” for home theater tips and
explanations when friends and family are looking to upgrade their entertainment
experiences. There’s just a lot of technical information to absorb, and
countless variables that can confound even the best laid plans. The purpose of
this article is to provide a general understanding of how Atmos works, and to
clarify the best speaker practices to follow when setting up an Atmos home theater. We discuss the minimum number of speakers you need in your home theater to get a proper Dolby Atmos experience.
Dolby Atmos Myths & Facts with Star Wars Recording & Mixing Engineer
To
help guide us on our way, Audioholics founder Gene DellaSala recently hosted a livestream with John Traunwieser, a recording and mixing engineer for
film and television, whose credits include work on multiple Star Wars
movies, the Hunger Games franchise, and other big titles. John offered
unique insights from the perspective of a professional whose job it is to
record and mix orchestras at Fox Studios, Warner Brothers, and Sony Pictures in
Los Angeles, as well as at Air Studios and Abbey Road in London. John has
worked with many notable composers,
including James Newton Howard, John Williams, John Powell, Hans Zimmer, Henry
Jackman, and John Debney. He also works as a mix tech at the Fox Studios
dubbing stages, assisting several Oscar-winning mixers. His hands-on experience
working in the Dolby Atmos format helped us to bridge the sometimes sizable gap
between the intent of the artists and professionals who create our entertainment
content, and us — the folks at home who want to enjoy that content in a way
that satisfies our individual needs while simultaneously respecting the effort
and care that went into crafting it. Let’s get started with some background
information on what Dolby Atmos is, and how it works.
Dolby Atmos
Primer
Dolby
Atmos is an immersive surround sound format that expands on previous systems by
adding height channels, ideally to be played back by speakers mounted onto or
into the ceiling above the listeners. This allows sounds to be interpreted as
three-dimensional objects placed anywhere within a three-dimensional sound
field. In earlier surround systems, each audio track was assigned to a channel,
correlating to a specific speaker. A 5.1-channel system used 5 speakers plus a
subwoofer. A 7.1-channel system used 7 speakers plus a subwoofer. Dolby Atmos
systems can scale up or down, adding additional speakers as needed depending
upon the size of the room. This means the content is not tied to any specific
speaker layout or configuration.
Mixers creating Dolby Atmos content still have the ability to assign a track to
a specific channel, using a 7.1.2 format. This is equivalent to a 7.1 system
with one stereo pair of height channels. This 7.1.2 layout is referred to as the
“bed” for Dolby Atmos. But mixers also have the option to assign a track to an
audio “object.” Each object is associated with an apparent source location in
the theater described by a set of three-dimensional rectangular coordinates
relative to the defined audio channel locations and theater boundaries. This
allows content creators to precisely place and move sounds almost anywhere,
including overhead, to create an immersive listening experience. During
playback, the Dolby Atmos system renders the audio objects in real time based
on the known locations of the loudspeakers present in the theater. This way,
the audio object is heard as originating from its designated set of
coordinates. The technology can adapt automatically to take advantage of the
number and placement of the speakers, whether there are five ear-level speakers
and four overhead, or 24 ear-level speakers and ten overhead. For home theater,

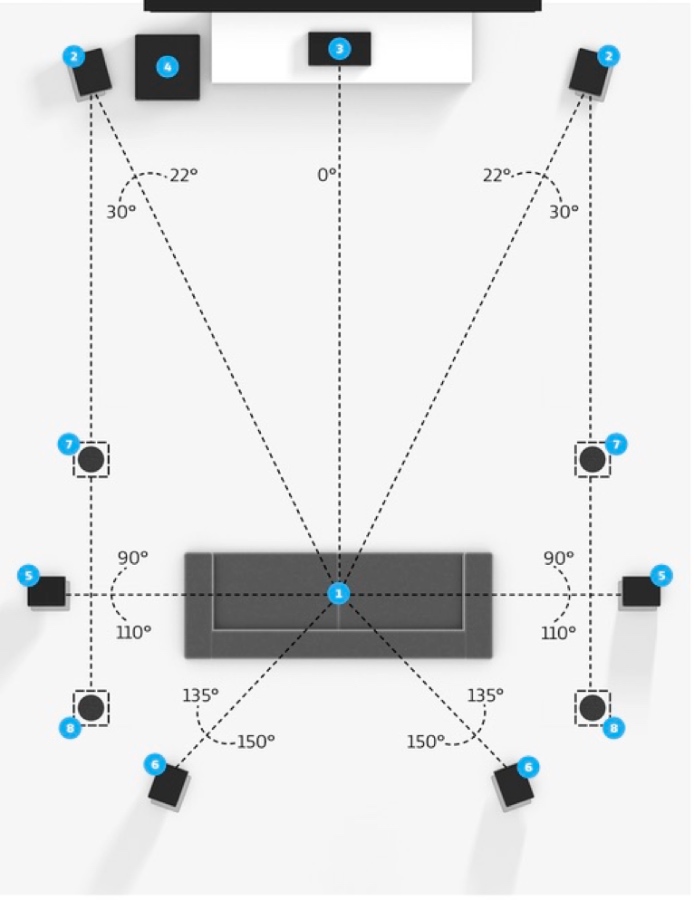

the gold standard layout is 7.1.4, with seven ear-level speakers, and four
overhead.

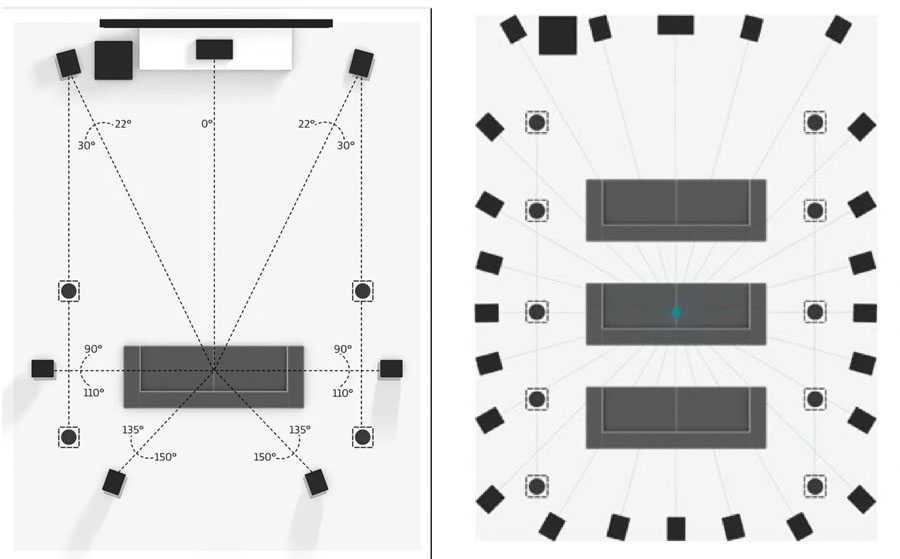

Dolby Atmos Speaker Layouts – 7.1.4 for home (left pic) ; Cinema Layout (right pic)
This
object-based system has a number of benefits over conventional multichannel
technology, in which each source track is assigned to one of a fixed number of
channels (5.1 or 7.1, for example) during post production. First of all,
systems like that did not scale up or down. If you were listening to a
7.1-channel soundtrack on a 5.1-channel system, any information being sent to
the two rear surround channels simply wouldn’t be played back on your system.
Secondly, conventional multichannel systems required the mixer to make
assumptions about the playback environment, which often didn’t align with the
speaker layout and physical setup of the theater. Object-based technology
allows the mixer more creative freedom and more confidence that, in a properly
set-up Atmos system, the listener will hear the content as it was meant to be
heard. From a mixing perspective, Dolby Atmos delivers higher spatial
resolution, along with the addition of the height plane, giving the mixer a
significantly larger, three dimensional “audio canvas” on which to build the
soundscape. This space can be used for exaggerated effects flying around
overhead, but it can just as effectively be used to add subtle spaciousness, or
to increase clarity by moving certain sounds off-screen, or by widening the music
to create an open sonic space for dialogue.
The
following is an excerpt from an explainer from Dolby’s gaming division, going
into slightly more depth about object-based audio. It describes “static” objects, which are assigned to
specific bed-layer speaker locations, and “dynamic” objects, which can be
placed and moved freely around the three-dimensional theater soundscape. These
concepts apply to home theater as well as to gaming.
The
foundation of Dolby Atmos is based on two types of audio objects: static and
dynamic. Static objects are commonly referred to as “bed objects,” as they are
defined as non-moving objects that are mapped to specific speaker locations.
Typically, this is a 7.1.2 layout and is referred to simply as “the bed,” which
corresponds to traditional non-Atmos configurations like 7.1 and 5.1. Dynamic
objects are audio objects that can freely move around the entirety of the
listening field. The bed is essential because it provides a format that is
still applicable for audio that works best in a channel-based environment.
Diffuse elements such as ambience, reverb, or anything else that doesn’t need
to dynamically move around the room would be panned to the bed. Additionally,
content that was used in a dynamic object can be folded down into the bed when
needed, based on prioritization and object management. Dynamic objects are used
for precise positioning and/or free movement of content within the listening
space. One of the most immediate features of Dolby Atmos is the ability to
represent sound on the Z axis. … This doesn’t just allow for a height plane, it
actually unlocks the ability for sound to be reproduced in its full
three-dimensional glory. One can take some first steps and place sounds in
zones along the listener’s
perimeter, such as front, side, back, and above. This is appropriate for most
content and can create extremely immersive and compelling experiences. The next
steps would be to approach design from a layered approach and include concepts
such as depth, frequency, proximity, perspective into creation of individual
assets as well as the scene as a whole.
—
Dolby Gaming
Dolby Atmos
Content
What
does all of this translate to in real-world listening? A lot of that depends
not only on the system used to play back the content, but also on the content
itself. Not all Dolby Atmos content is created equal. Some titles with “Dolby
Atmos” audio use only the bed, with no dynamic objects. In such cases, larger
home theaters with additional speakers don’t see much benefit compared to smaller
systems with fewer speakers. According to John Traunwieser, objects are generally used for two
things, and two things only:
-
Atmospheric
sounds that you want to fill the space, filling in the gaps with extra
speakers. -
Point
source sounds. These are sounds effects: things whizzing by, or particular
effects that you want to localize better.
If
the mix consists entirely of the 7.1.2 bed, but you have a bigger system with
more speakers — 9.1.6, for example — the Dolby Atmos renderer can fill in those
speakers, but you won’t hear any unique information in the additional speakers
if you don’t have object content in the mix. Here’s a concrete example. Let’s
say you have a large, multi-row theater. Where a typical 7.1.4 layout would
have just one side surround speaker on each side wall (to the left and right of
the listening position), a large theater might have 5 side surround speakers on
each side wall, so that multiple rows of seating are covered. Now imagine a
scene in a movie in which a monkey swings down from a tree in front of you,
whooshes right past you, and then lands high up in a tree behind you. The
specificity of the sound in this scene would depend on how it was mixed. If the
mixer used only the bed and no dynamic objects, you would notice a few things.
When the monkey whooshed by you, the sound would pass through all 5 of the side
speakers simultaneously, so there would be less localization and a less
realistic sense of movement. If the mixer used a dynamic object for the monkey,
the sound would pass through each of the 5 side speakers individually. The
algorithm is scaled in the renderer, depending on the layout. The second
difference you’d notice would relate to the overhead sounds. The Atmos bed only
has one stereo pair of height channels (that’s the “.2” at the end of 7.1.2).
So if the mixer used only the bed, the sounds coming from up in the treetops
would have left-to-right separation, but no front-to-back separation. You would
simply hear the monkey move from above, down to ear level, and then back above.
If the mixer used a dynamic object for the monkey, you would hear it go down
from the treetop in front of you, past you at ear level, and then up into the
treetop behind you.
There
is a lot of static Atmos out there, especially in TV/streaming releases. This
is usually if the shows were mixed primarily in 5.1 or 7.1, and then up-mixed
to Atmos. TV and streaming mixes usually have 1/10th of the time as a
theatrical mix, so not enough time is spent on objects.
—
John Traunwieser
There
are a few reasons why an Atmos mix might have limited use of objects. John Traunwieser says that, when it comes to a film’s
music, a lot of soundtracks “aren’t
really mixed in Atmos because you don’t want
instruments flying around the room. If you just stick with the bed, (even) if
it’s an
‘Atmos’ mix, you would only be hearing music through the bed. Sometimes, he
says, a mixer might utilize objects for certain strategic things, such as
placing a choir in the ceiling speakers to get it “off the screen,” or to push
certain sounds wider off the screen so that they’re not in the way of the
dialogue. But in many cases, mixers shy away from using objects because a
soundtrack rich with object information doesn’t always translate down (to
channel-based formats) in a way that is desirable. Many theaters — both
professional cinemas and home theaters — still aren’t equipped for Atmos at
all. Atmos titles therefore need to be delivered to the studio in a
channel-based format, such as 7.1, in addition to the Atmos mix. And there
often isn’t enough time or money available to create two totally separate
mixes. In fact, budgetary limitations are one of the main reasons why some
Atmos titles consist primarily of “bed” material. Creating individual objects
for dozens of tracks and carefully placing them and moving them around takes a
lot of time, and time is often in short supply.
You
would think that something like Star Wars, or any high-budget Marvel
show, or whatever, you’d think that the budget is out the window and you try to
get the best result that you want, (but) there are so many factors at play. I
don’t want to tread on any toes, but it’s a collaborative effort, and so you
will do the best that you can in any environment, but sometimes you have many
different opinions from many different people. And a lot of films that I work
on, they do these test screenings to random people, and then you’re having a
whole other set of feedback from random people watching unfinished content. And
depending on the scores of those screenings, they will go back, re-cut the
film, re-edit something, re-record the music, do all kinds of stuff. The best
product that comes out is when the vision is clear, and it’s executed well, and
everybody respects each other in their expertise. And you get the best result
that way. … There’s always a budget and a time constraint. Unfortunately, audio
is always the end of the process, so the film is finished, and the audio mix is
always the last thing. And for some reason, we operate like high-schoolers in
that everything gets delayed and delayed and delayed, and pushed to the last
minute. And then everybody tries to cram and get everything done to make the
release date.
—
John Traunwieser, on the Atmos mix for The Last
Jedi
Theatrical
Mix vs Near-Field Mix
Many
Dolby Atmos movies actually get two mixes; the theatrical mix that is played in
the movie theaters, and the near-field mix for home entertainment. Any
big-budget movie that will be released in theaters will first get a theatrical
mix; most of the time and budget are devoted to this mix. If budget allows, a
second near-field Atmos mix for home entertainment is then created. This mix is
typically done in a much shorter period of time, though the mixers have the
benefit of a completed theatrical mix to use for reference. Finally, a 5.1/7.1 mix might be made, often in just a day or
two. Time and budget are the key factors here, but another is the intended use
of the movie or TV show. If the title is being made for Netflix, Disney+, or
HBO Max, it stands to reason that the near-field mix will get the most time and
attention. Sometimes a studio will request a theatrical mix for a streaming
title, either for archival purposes, or just in case the title ever gets a
theatrical release. For some Atmos mixes, the Dolby renderer can do an
automated down-mix to 5.1/7.1, and the results are acceptable. As discussed
earlier, this is more likely when there is less use of objects. In other cases,
creating a 5.1/7.1 mix from an Atmos mix requires more hands-on tweaking. According
to John Traunwieser,
mixers don’t always have the luxury of time to listen critically to every
format and make the necessary adjustments.
So,
why the two Atmos mixes? Wouldn’t the theatrical mix give home theater
enthusiasts the best experience? Why make a separate near-field mix? A lot of
it comes down to room size, and the distances between the listeners and the
speakers. Dialing in a mix for a sweet spot centered on just a couple of people
is different from averaging out a mix for a much bigger room with many more
rows. A theatrical mix might not be quite as dialed-in
for a single spot, but overall it’s better for more people. And so some of the
mixing decisions will change based on the environment in which the mix will be
played back. In a large theater, the seats on the left-hand side might be 75
feet away from the speakers on the right side of the theater. And so panning
can’t be as exaggerated, or the people on one side of the theater might miss a
significant amount of information. In a large theater, the mixer might choose
to have dialogue coming out of all three front LCR channels as opposed to just
one spot corresponding to the location of the character. In a near-field
environment, where the room is smaller, that’s less of an issue and dialogue will
almost always come out of the center. These are just a few of the
considerations that mixers must keep in mind when creating a theatrical mix
versus a near-field mix for home entertainment.
Most
people will only listen to Spotify low quality, or … whatever streaming format
it is, and make criticisms (without) understanding the technology… not
understanding why it sounds bad.
—
John Traunwieser
Streaming Quality Compromises
Audioholics
readers surely know that streaming media can vary in quality depending upon the
bitrates and the compression schemes used to transport the digital data from
the cloud to whatever device you’re using for playback. For example, if you’re
listening on any decent audio system, you will hear the difference between
Qobuz (which delivers lossless high-resolution audio) and Spotify, which as of
November 2022, has failed to introduce the Hi-Fi tier that it announced in
February of 2021. Spotify still uses lossy compression for all streams.
Practically all of the other audio streaming services, including Tidal, Apple
Music, and Amazon, offer lossless audio. Unfortunately, lossless audio is NOT
the norm when it comes to streaming video content. Video streaming services
have to accommodate 4K picture in addition to audio, and there’s only so much
bandwidth to go around. So while Dolby Atmos audio is offered by many of the
leading streaming services (Netflix, Disney+, Amazon Prime Video, HBO Max),
your Apple TV or Roku device isn’t serving up the same lossless audio that
you’d get from an Ultra HD Blu-ray
disc, or from a high-end server solution like Kaleidescape. That higher-quality Dolby Atmos is
packaged within the lossless Dolby TrueHD format first introduced with the
original Blu-ray format. Dolby Atmos on streaming services is packaged within
the lossy Dolby Digital Plus format, which uses lower data rates. Atmos audio
is particularly affected by the use of lossy compression because, according to John Traunwieser, audio objects in Atmos have a
different bit rate than the bed channels in streaming media. He says that the
bitrate used for objects is “a lot lower than you would think,” and that “if
you were to mute the bed channels and only listen to the objects, you wouldn’t be very impressed with what you’re hearing.” That’s another reason why
mixers often don’t place critical music information in objects. Dolby Atmos
music can sound great, even when streamed on a device like Apple TV. On a
Blu-ray, it can be even better. While some audiophiles will remain devoted to
two-channel content and gear until the Earth crashes into the sun, others —
including Chief Audioholic Gene DellaSala — can’t get enough of Atmos music (aka. Spatial Audio).
But if you spend any significant time listening to music in the format, it will
become clear that not all of it sounds very good.
Consumer
products sometimes outpace professional workflows. It’s like 8K TV. There isn’t
any, or hardly any, content in 8K. It’s the same thing with Dolby Atmos. So
many music studios still don’t have Atmos (mixing capability) built into them.
So what will end up happening is you’ll mix it in whatever format is there,
whether it’s stereo stems, 5.1 stems… and then you send it to a mastering
person who will up-mix and create an Atmos version based on those stems. Only
recently, in the last few years, studios have started to upgrade their rooms
and get Atmos setups. So there hasn’t been a ton of content. Obviously the
bigger titles have studios that have that capability but there is a lot of
stuff out there that has “faux” Atmos, or just up-mixed surround content that wasn’t
mixed natively in Atmos. Now you have record engineers that are more savvy to
Atmos, who even start recording with more microphones with Atmos in mind.
—
John Traunwieser
How
to Set Up a Dolby Atmos Home Theater
With
great speaker count comes great confusion. Even in the days of 5.1-channel
audio, poor speaker positioning was a common cause of bad sound in home
theaters. With Atmos, a high-performance home theater will likely have 11 or
more speakers and multiple subwoofers, and it’s no wonder that this increased
complication causes headaches for those in search of the best performance from
their audio systems. Placing the speakers (and seating positions) for a Dolby
Atmos theater isn’t hard if you have an ideal room and complete freedom to put
everything precisely where it should go. Just fire up a tool like Audio Advice’s interactive home theater designer and you’ll be done before you know
it. For most of us, however, it’s not so simple. Realistically, setting up an
ideal Dolby Atmos system has its challenges. The purpose of this guide is not
to say that your home theater has to be an all-or-nothing, hardcore megabuck
system to be worthwhile. Instead, it’s intended to help clear up certain areas
of confusion, and to help our readers understand which Dolby Atmos “rules” are
the most important to follow, and which ones can be fudged a bit. If you have
the ability to build a perfect spec-sheet Dolby Atmos system, do it! If you
have to work within the limitations of a multi-use living room, you can still
achieve good results if you know what to prioritize. In such situations, a
number of questions will probably arise. Do I really need to place speakers on
or in the ceiling? How many speakers do I need? How important is it to place
the speakers where Dolby recommends?
7.1.4 Speaker Layout is the “Gold Standard” for Home Cinema
As
an audio professional, John Traunwieser
has some insight into the importance of proper speaker placement. “That’s
everything, really,” he said. “When you talk about hearing what the director
intended, the artist intended, they are making those decisions in a room that
is calibrated, and meeting certain specifications that make it Atmos.” As for
the number and configuration of speakers, a 7.1.4 layout is the gold standard
that enthusiasts should shoot for whenever possible. That’s not to say that
it’s the best configuration for everyone. If your room’s front-to-back length
is on the short side, you may only be able to accommodate a 5.1.4 system. If
you have a huge theater, you might benefit from a third pair of ceiling
speakers, additional “wide” speakers for the front stage, and/or multiple side
surround speakers to provide coverage in a multi-row setup. But 7.1.4 is the
layout that John
most often encounters in the studio, and it’s considered the best layout for a
typical home theater.
How Many Speakers for Proper Dolby Atmos Playback Youtube Discussion
Some might be tempted to simplify the installation by
using only one pair of overhead speakers, but you need a minimum of four
overhead speakers — two in front of the listening position and two behind — in
order to recreate the front-to-back movement and three-dimensional localization
that object-based audio was designed to provide.
Klipsch Atmos-Enabled (aka. “bouncy house”) Speaker
Like Gene, John is not
impressed by “bouncy house” reflective-style speakers that sit at ear level and
fire upward, with the goal of bouncing sound off of the ceiling to create the
aural illusion of height channels. Ditto for Dolby Atmos soundbars. “It’s
abusing the (Dolby Atmos) terminology,” John says. “You don’t get the same
effect, and I wouldn’t know how to judge a mix listening to content through a
system like that.” John’s strong recommendation is to use in-ceiling or
on-ceiling speakers, placed as close as possible to Dolby’s official
recommendations (with a few minor tweaks that I’ll get to momentarily).

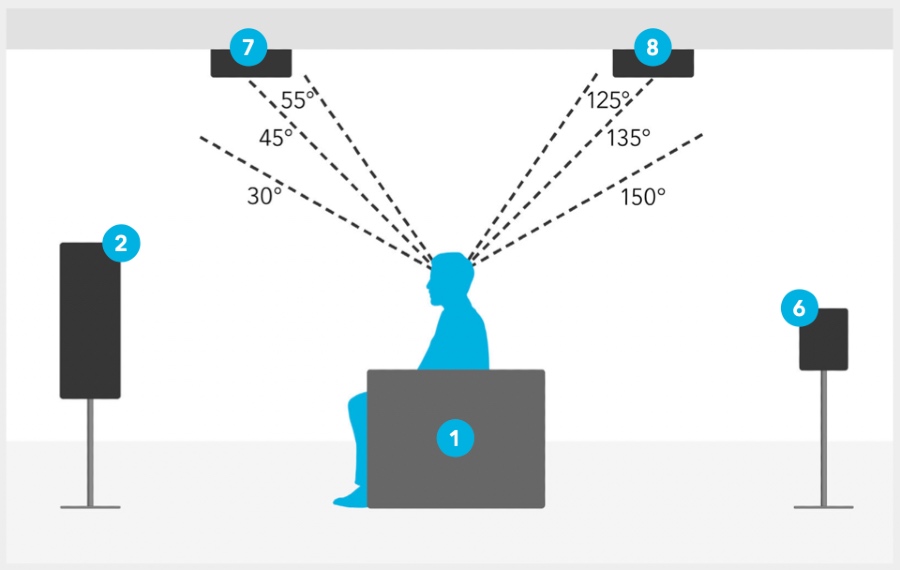

For
the sake of brevity, we’ll assume that you know where to place the 7 ear-level
speakers in a 7.1-channel system, and we’ll focus on the proper placement of
the 4 height channels to complete the 7.1.4 Dolby Atmos configuration. (One thing
to note is that Dolby does not recommend the use of dipole speakers for the
surround channels in an Atmos setup. These were commonly used in conventional
5.1 and 7.1 setups.) If you do need a refresher on how to set up a 7-channel home theater, the Audioholics website already has
you covered. Here’s what Dolby has to say about the use of overhead speakers:
Overhead
sound is a vital part of the Dolby Atmos experience. (The best) solution is to
install speakers overhead. Most conventional overhead speakers with wide
dispersion characteristics will work in a Dolby Atmos home theater. Dolby Atmos
audio is mixed using discrete, full-range audio objects that may move around
anywhere in three-dimensional space. With this in mind, overhead speakers
should complement the frequency response, output, and power-handling
capabilities of the listener-level speakers. Choose overhead speakers that are
timbre matched as closely as possible to the primary listener-level speakers.
Overhead speakers with a wide dispersion pattern are desirable for use in a
Dolby Atmos system. This will ensure the closest replication of the cinematic
environment, where overhead speakers are placed high above the listeners. If
the chosen overhead speakers have a wide dispersion pattern (approximately 45
degrees from the acoustical reference axis over the audio band from 100 Hz to
10 kHz or wider), then speakers may be mounted facing directly downward. For
speakers with narrower dispersion patterns, those with aimable or angled
elements should be angled toward the primary listening position.
The
overhead speakers should be at a height between two and three times the
vertical position of the listener-level speakers. The angle of elevation from
the listening position (to the front and rear) overhead speakers in a 7.1.4
reference layout should be 45 degrees. This may be adjusted between 30 and 55
degrees if needed. See the related image for the preferred locations of the
four overhead speakers as seen from above. The horizontal width should be about
the same as the horizontal separation of left and right speakers, placed at ±30 degrees. If this guidance is followed,
the overhead side-to-side separation should be 0.5 to 0.7 of the width of the
overall layout, depending on the distance to the screen and the front three
speakers, relative to the surrounds. It is best to keep the overhead
arrangement centered, front to back, over the listening area, even if the front
speakers and screen are at a greater distance (from the listener) than the
surround speakers.
—
Dolby
The
advice above from Dolby is specific to home theater Atmos systems; the
guidelines for professional cinemas are slightly different. John Traunwieser says that the differences between the
Atmos home entertainment spec and the Atmos theatrical spec are interesting,
particularly with regard to the placement of height channels. “It’s a little
tricky,” he says, “because I’m producing content that could be in a theater or
for the home and I have to find a hybrid of both worlds to be able to translate
mixes to many different environments.” The differences likely come down to
ceiling heights. In a cinema, the high ceilings mean that there is a much greater
distance between the listener and the ceiling-mounted speakers, and between the
ceiling speakers and the side/rear surrounds.
For
home entertainment, (Dolby’s) spec is to widen the heights to have them closer
to the (left and right) edges of the room. Whereas for theatrical, the heights
are pushed more toward the center of the rooms (again, with regard to
left-to-right distance, not front-to-back). And generally, every studio that
I’ve been in, the heights are generally closer to the center. Because, you
know, it can vary depending on the height of the room, but if your side
surround speakers are at ear height or a little higher, if they’re too close to
the ceiling speakers, then you don’t get much isolation or separation in the
sound, and depending on the treatment in the room and how reflective it is,
then it can just blend together and you may as well just have one speaker
there, it doesn’t make much of a difference. So I like to have (the height
channels) closer to the center, as do most studios, so that you can localize
what’s coming from the ceiling clearer, and what’s the side channels clearer.
—
John Traunwieser
Height Speakers Placement Recommendations
Gene
also recommends a slight modification to Dolby’s spec with regard to the
placement of overhead speakers, but while John’s adjustment pushes the speakers
closer together laterally, Gene’s has to do with their front-to-back
positioning relative to the listener. As quoted above, Dolby recommends a
45-degree angle of elevation from the listening position to the overhead
speakers (with 90 degrees being straight up). According to Dolby, there’s some
wiggle room there, and anything from 30 to 55 degrees is acceptable. Gene
recommends sticking to the smaller end of that range, placing the front Atmos
speakers 25 to 35 degrees forward from the main listening position, and the
rear ones 25 to 35 degrees behind. (For the record, he also positions them
laterally closer together than the spec dictates, just as John does). Gene says
that these narrower angles of elevation and tighter formation of overhead
speakers result in a more enveloping sound, as long as you’re using speakers
with sufficiently wide dispersion.
Dolby Atmos Height Channel Angles
But
what happens when you run into obstacles? Maybe there’s a doorway where you
want to place a surround speaker, or a light fixture where you want to place an
in-ceiling speaker. You might think that these compromises would never affect a
professional like John, but even pro mixers live in the real world. The
Covid-19 pandemic forced a sea change in the way Dolby Atmos content is created,
with many pros setting up home studios and working remotely. By necessity,
Dolby even relaxed some of its technical guidelines, allowing mixers to work in
studios that weren’t certified using DARDT, the official Dolby Audio Room
Design Tool. Perhaps one of the reasons why Dolby gives a relatively wide range
of recommended angles for overhead speaker placement is to allow users some flexibility.
(Another explanation has to do with the fact that humans are not as sensitive
to vertical and overhead location cues as we are to horizontal location cues,
owing to the simple fact that our ears are on the sides of our heads.) In any
case, how do you proceed when you can’t follow Dolby’s guidelines to the
letter? Sometimes you have to place the speakers where you can place them, and
at the end of the day, you might still have a pretty good-sounding system. But
if you stray dramatically from Dolby’s spec, you will run into problems. John
is currently building a home studio, and there’s a fireplace in the room. I don’t
recall seeing a fireplace in any of Dolby’s diagrams. Whether you’re building
an Atmos mixing studio or an Atmos home theater, these real-world challenges
will present themselves. John’s advice is to turn to a professional for help,
and that’s precisely what he did. John sought advice from Gene DellaSala and
our friendly neighborhood acoustics expert, Matthew Poes.
It’s critical to have a professional know
what your room is, and what to work with, and where to place (the speakers).
Because the average person wouldn’t know
just from typing in dimensions and getting a generic placement for speakers. I’m not (rigidly) following the Atmos
spec because I have obstacles that I have to get around, but I have the
experience to know, well that’s ok, I
can put them here and it will be ok. So there is a wider threshold for putting
things in different places. It varies depending on the room size and what you
have in there.
—
John Traunwieser
Q&A
During
the livestream, viewers had the chance to ask questions and get straight
answers about topics that sometimes spark confusion or disagreement among home
theater enthusiasts. Some of the questions have been edited for clarity.
Q1.
Should a speaker layout match the visual Dolby Atmos renderer on Logic Pro?
That is, if the renderer interface shows objects in the corners of the room, do
you need speakers in those locations? Is the renderer of Logic Pro showing a
valid spatial map of the recording? What about the virtualization of sound
between speakers?
John:
“Whether it’s Pro Tools or Logic or any other DAW (Digital Audio Workstation),
the panner graphic or GUI is just a generic box with dots. It’s not a
representation of how your room should be laid out. It’s something that
engineers look at to pan whatever, but it’s just a generic box. In Pro Tools
it’s a cube, and it just gives you a general idea of where you’re placing
something. Ultimately, you’re going to use your ears and pan the sound effect
or instrument to the location that you want. So (the GUI) is there as a guide
but it’s not showing you what your layout should be.”
Q2.
Are there some places where you can’t place objects?
John: “Objects
can be placed wherever you want. All of the speakers can be taken advantage of,
using objects.”
Q3.
Some people advocate placing height speakers high up on the front and back
walls. Is that desirable, or should they be on/in the ceiling?
John:
“Every single studio I’ve ever been to has Atmos speakers on the ceiling.”
Matthew
Poes added:
Either could be correct, it depends on the angles. The walls make
sense if you had very low ceilings. Otherwise, to get the angles right, they
would need to be in the ceiling. So, the notion that they should be on the
wall, or that that’s the ‘correct’ position (is false). That can work OK in
certain circumstances, but that’s not generally the preferred position.
Q4.
What are your thoughts about automatic up-mixing in AV receivers?
John:
“We always have a fight when it comes to listening to mixes through consumer
(equipment) because there is so much additional processing happening in
receivers that is undesired, especially when it comes to up-mixing. Because
that’s when you’re completely falling off the map of what the original mix was,
and essentially you’re remixing it. If you’re watching a 5.1-channel movie but
you up-mix it to Auro or Atmos, the box is doing something, and it’s everyone’s
guess what it’s doing.”
Q5.
Is it important to you that people hear a mix the way it was intended to be
heard?
John:
“The tools are now available to all the consumers to tweak, and people like
tweaking with things. And there are a lot of mixes that sound terrible, and
people think they can make them sound better. And sometimes they do sound
better. … A bunch of mixers shy away from objects and are very subtle on any
Atmos effects, and some go in the opposite direction and put too much content
in the surrounds. Yes, you’re an artist when you’re creating content and you
have certain freedoms to do wacky things, but it’s ultimately up to people’s
tastes. Some may like it, some may not. But I think that’s where it comes down
to, if it’s wacky then that was the intention. And if you have it set up right,
and you hear the content wacky, that’s how the artist intended it to be. If you
“correct” that, then it’s different. It may be better; it may be worse, but
it’s different. The thing that I will preface is that a lot of people don’t
know if they’re hearing it the way the artist intended, and they’re making
critical decisions based on (what they are hearing). That’s what drives us
(professionals) nuts. People are like, ‘This sounds terrible, or, ‘Who mixed
that? What were they listening to?’ (And yet these people) are not realizing
that maybe the AV receiver was having the ‘Concert Hall’ effect on. Or, you’re
listening to something that is such a low bitrate that everything sounds
compressed, with no dynamic range, sounds harsh. And I would love for people to
have the ability to hear it how we hear it, because that is the best
experience.”
Q6.
What are your thoughts about Dolby Atmos in headphones?
John:
“Atmos in headphones is really behind in terms of being able to pinpoint sounds
so that you can tell precisely where they are coming from. Using a generic HRTF
(Head-Related Transfer Function) doesn’t give you the localization that
physical speakers in a room can give.”
Q7.
Do you prefer mixing theatrical content, or content for streaming and home
theater?
John:
“There are mix decisions that I have to make that are compromises to make it
translate better to a wider medium. That’s why I like theatrical content the
best because it has a stricter standard of calibration and setup. … When it
comes to consumer products, there’s so much out there, you can’t possibly make
it sound good on everything.”
Q8.
How important is system calibration? Can one calibration be used for all
formats and source components?
John:
“Not all the content you’re listening to is in Atmos. You could be listening to
5.1 or 7.1 content through your Atmos system. And if you want to get very granular,
if you want to hear it as the director intended, technically you should have
different calibrations for different formats. The bass management is different
for Atmos and Imax and 5.1/7.1. In a properly calibrated room at 5.1/7.1, the
surrounds are down 3dB, so they should be 82dB, not 85dB. When you’re
calibrating an Atmos room, everything is at 85dB, so you’re already hearing the
surround speakers 3dB louder than they should be (when listening to 5.1/7.1
content). Even going back and forth between an Apple TV and a Kaleidescape, I can’t use the same calibration
because they don’t sound the same.”
Q9.
You’ve mixed in lots of different studios. Do they all use a standardized Atmos
setup?
John:
“It’s still the Wild West in studios.
Depending on which studio you go to (for mixing), it can be a different
configuration.”
Conclusion
We’d
like to thank John Traunwieser
for sharing his knowledge and insight. We hope that this discussion helps our
readers understand how Atmos works, and how that informs the best way to set up
a Dolby Atmos home theater. If you STILL need help with your Dolby Atmos Home theater, you can always do a one-on-one home theater consultation with Gene DellaSala, or you can
contact Matthew Poes about acoustic optimization and setup of home studios,
dedicated listening rooms, and home theaters.
Leave a reply
